In a class of its own in packaging and commercial printing.

How can you address the increasing demands in the printing market?

The machine concept of the Speedmaster CX 104 combines proven reliability with technical innovation and an outstanding operating concept. It makes printing fun!

The Speedmaster CX 104 opens up a whole new host of opportunities to you – right up to navigated or autonomous production.

This is made possible by intelligent assistance systems like Intellistart 3 and Intelliline, which revolutionize job changes with timeoptimized automation and provide complete transparency.

More variety in less time.
Universally deployable.

The Speedmaster CX 104 can process a wide range of substrates and can be configured with various equipment packages as required. You will convince your customers in every respect with the performance range of this press.

Intelligent Automation

HEIDELBERG UX

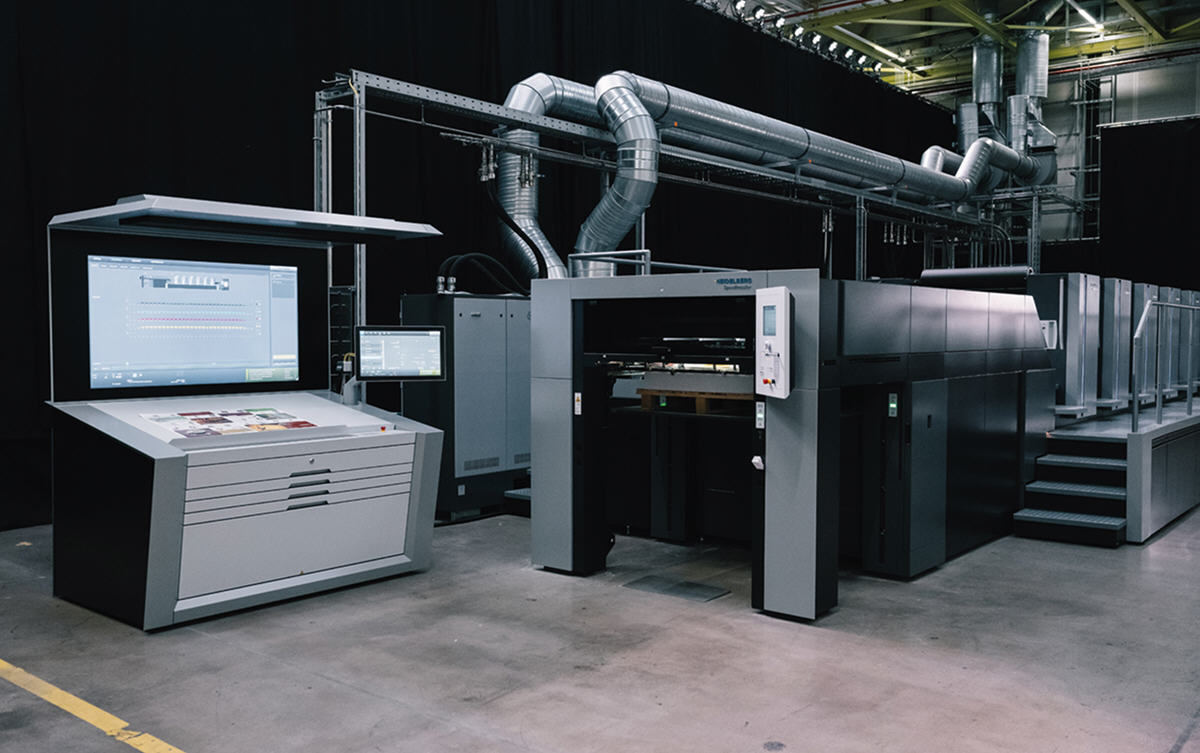

The Prinect Press Center XL 3 and intelligent support systems ensure results that can be planned and increase performance through the unique navigation Intellistart 3.

The focus is on the user.

  • Speedmaster Operating System: Convenient control through intuitive touch operation on the Prinect Press Center XL 3.
  • Integrated support systems: For short setup times and reliably high print quality.
  • Push to Stop: Navigated / automated printing with Intellistart 3 and Intelliguide.
  • 24” multi-touch screen: Intuitive operation similar to a smartphone.
  • LED color test light: Everything in the right light.

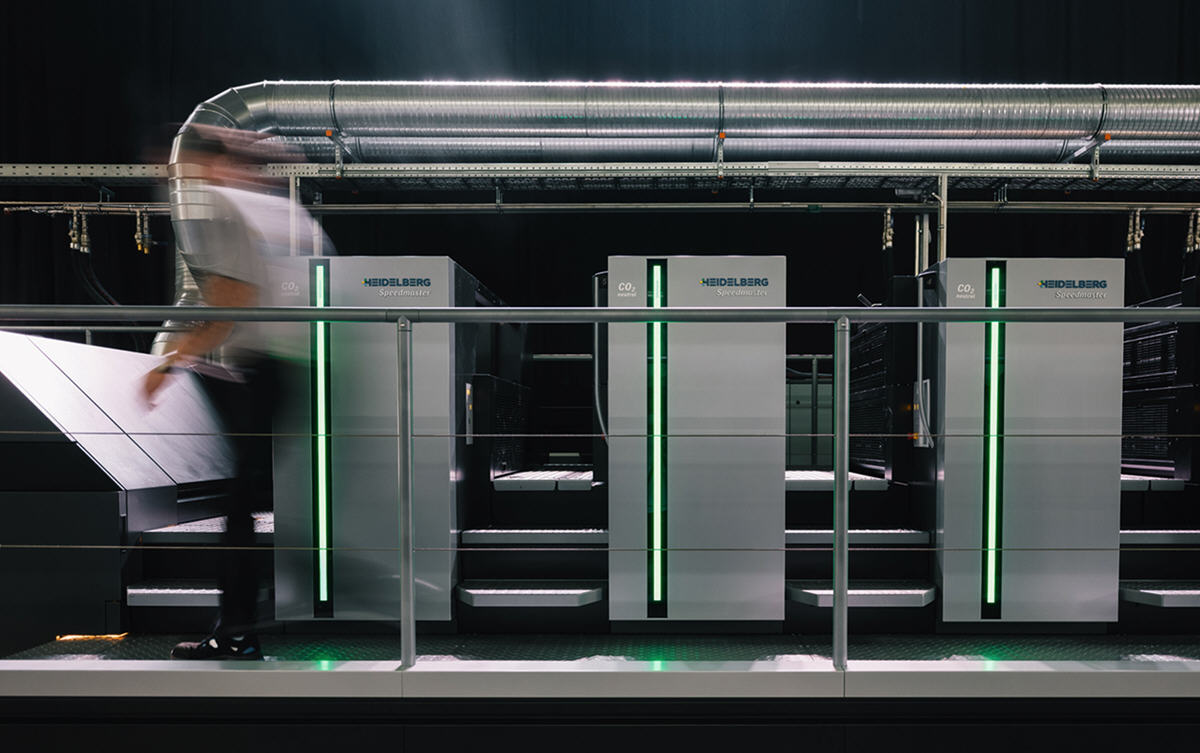

  • Intelliline navigation support: Production is always within view with the colored LED elements on the printing units.
  • Prinect work flow: Perfect data and color management.

Innovative operating concept

Ergonomic design for an optimal operating environment.

The well-designed steps, landing and rail system allow easy access to the press. All areas of operation are easily accessible for the operator to safely use. Downtime is significantly reduced, and overall productivity is increased.

Thanks to intelligent design solutions, this advantage in operator ergonomics does not come at the expense of additional space.

Easy changeover

An innovative coating unit with extraordinary ease of use.

The innovative coating unit is designed for diversity and quick changeovers between different types of printing jobs.

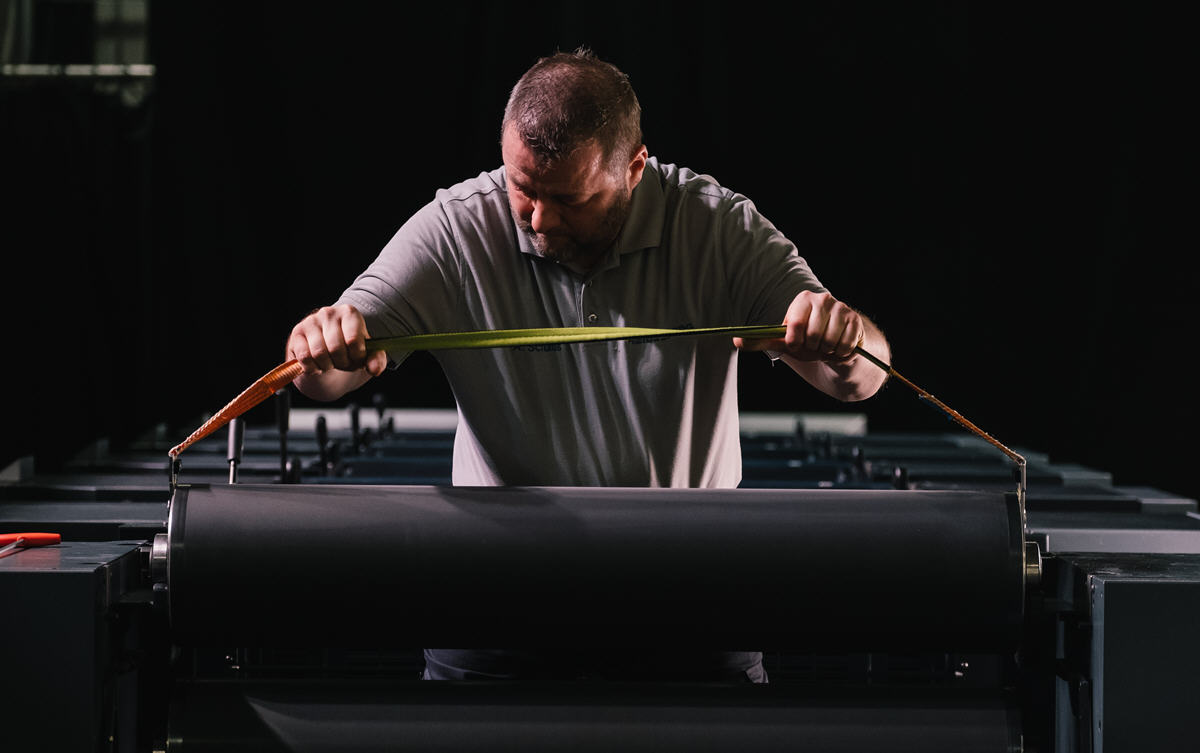

The improved anilox roller change in the coating unit makes setting up noticeably easier, safer, and faster. The coating plate can now also be easily clamped centrally. This significantly accelerates changeovers.

The integration into the machine control via the Prinect Press Center XL 3 offers a multitude of options for remote adjustment, such as register setting, pressing provision, and outlet control.

Highly versatile

The use determines the printing process - the choice is yours.

How can you address the increasing demands in the printing market? Through a flexible configuration of the printing press. The Speedmaster CX 104 allows you to flexibly switch between conventional and instant drying UV colors - supported by the additional washing cycle for the inking unit, blanket, and printing cylinder.

Auto Protect: Roller protection during operation. If a printing unit remains unused after a changeover, it is automatically completely washed and a roller protection agent is applied.

Clean environment - Clean workplace. In general, a more or less pronounced overspray is created in the inking unit. This is absorbed by the integrated and powerful ink mist extraction system in the Speedmaster CX 104.

Key features

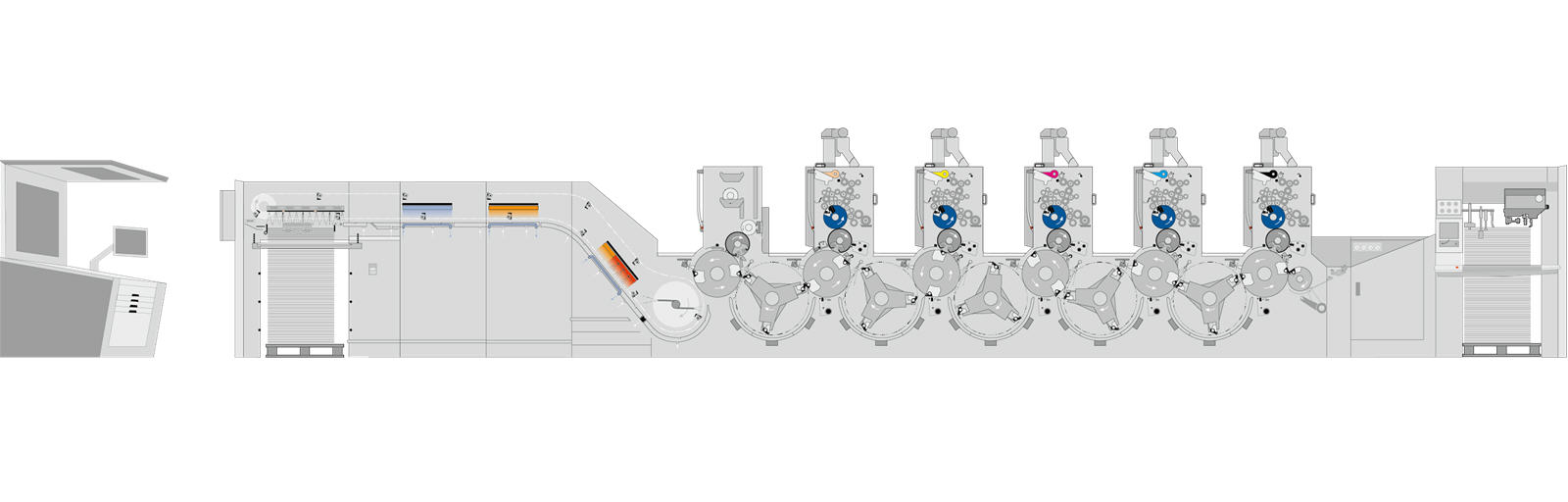

The Preset Plus delivery 9 Sheet travel 4 The inking unit and dampening unit 3 The machine control station 10 The dryer systems 8 Coating unit 7 The printing unit 2 Color and register measurement and control system 6 The washup devices 5 The Preset Plus feeder 1
Sample configuration

Speedmaster CX 104-5+L. The press shown is a sample configuration. Some of the equipment features mentioned are optional.

Technical information

The Preset Plus delivery – perfection right down to the pile

High-precision pile formation with the shortest makeready times by adopting presetting data in the Preset Plus delivery.

Presettable, dynamic sheet brake accepts the sheet at production speed, straightens it, and decelerates it to the delivery speed under controlled conditions.

Sheet travel – reliable guidance through the machine

Outstanding sheet travel quality and substrate flexibility due to AirTransfer system, the patented, contact-free sheet guide with Venturi nozzle technology.

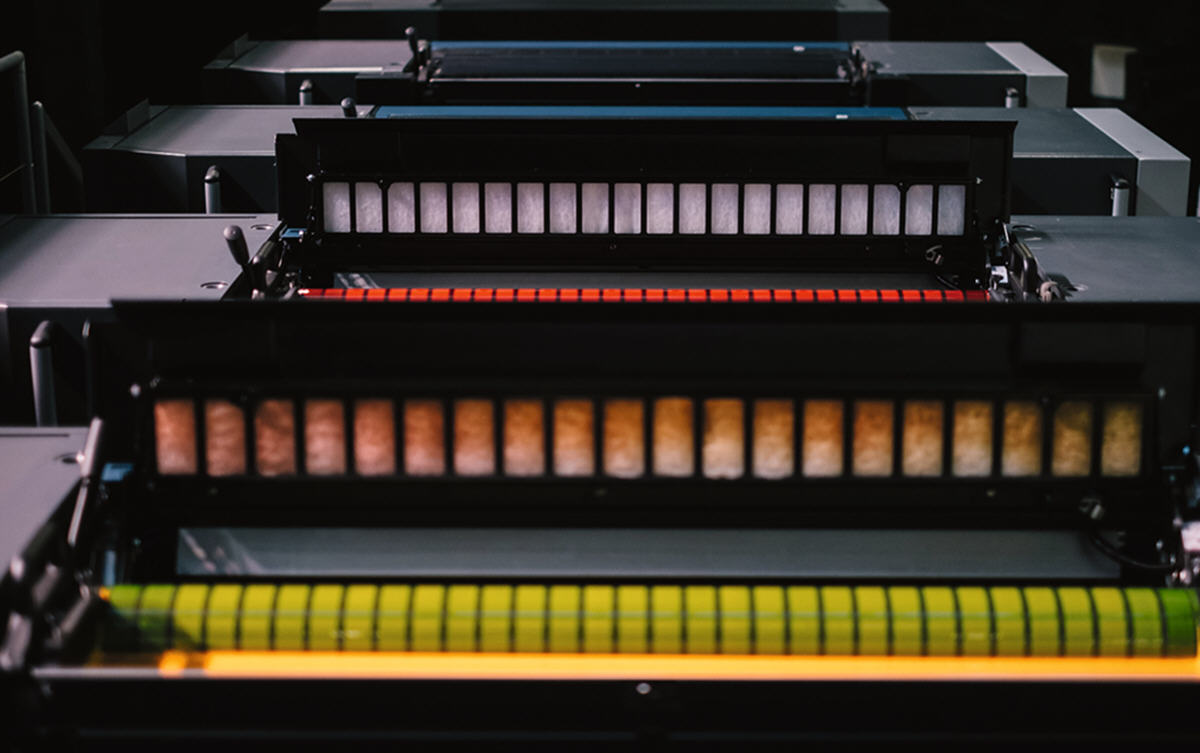

The inking unit and dampening unit – quality in a nutshell

  • Outstanding production stability, high contrast, and homogeneous printing of solid areas due to the tried and tested inking unit with lined ink fountain, perfectly combined with the unique, speed-compensated Alcolor dampening system.
  • Perfect ink metering - Color Assistant Pro software for self-calibration of the ink zones and automatic adaption of the characteristic profiles.
  • Automatic filling of the ink fountains using the InkStar ink supply system.

The machine control station – one-of-a-kind navigation and automation

Prinect Press Center XL 3 control station with intuitive Intellistart 3 operator guidance system for fast, process-oriented setup, user-friendly operation, predictable results and improved performance.

More about Prinect Press Center XL 3

The dryer systems – quickly and efficiently into postpress

  • Excellent drying results thanks to DryStar Combination with infrared as well as hot-air and recirculated-air modules is optimally coordinated with the sheet travel.
  • The UV preparation for the use of LED dryers enables fast processing and the expansion of the range of applications.

The coating unit – for the highest standards of finishing

Innovative coating unit with a high quality chamber doctor blade system, consisting of doctor blade chamber, exchangeable anilox roller as well as ink drip tray with level sensors for a homogeneous coating with high gloss. Quick changeover systems for doctor blades and anilox rollers to facilitate operation and increase the efficiency.

The printing unit – designed for productivity

The fully automatic, staggered plate changer AutoPlate Pro works quickly and precisely, and saves valuable makeready time.

Color and register measurement and control system – integrated reliability

Prinect Inpress Control 3 spectrophotometrically measures and controls the color inline during production. The register is checked at the same time and readjusted if necessary. Powerful ink mist extraction for optimal printing and working conditions.

The washup devices – intelligent and economical washing

Extremely short washing times combined with outstanding washup results thanks to program-controlled blanket washup devices for blanket, impression cylinders and inking unit.

The Preset Plus feeder – high performance for quality right from the start

Reduced makeready times and steady sheet travel – the Preset Plus feeder automatically adapts to format and air settings.

Intuitive and ergonomic operation of feeder and machine functions due to control panel with touchscreen.

Suitable for the following segments

The Speedmaster CX 104 is the cross-segment straight-printing press for:

Commercial printing

Packaging printing

Label printing

To find your optimal configuration, please contact your local HEIDELBERG sales representative.

Downloads

What customers say

S+G Druck GmbH & Co. KG, Germany

"The new Speedmaster CX 104 has exceeded our expectations - especially in terms of print quality, stability, flexibility and sustainability.”

VJ7 Printing & Packaging, Philippines

The speed and quality of the Speedmaster CX 104 has enabled VJ7 to increase productivity exponentially, while the connectivity Prinect provides to their HEIDELBERG prepress has reduced downtime by 50%.

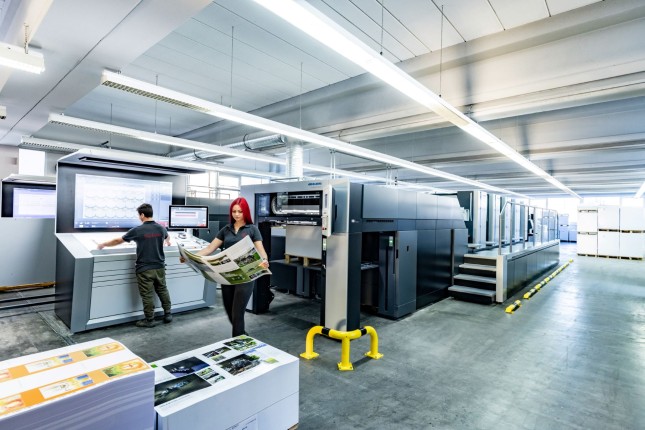

RCDRUCK, Germany

“The new coating unit and the larger sheet format combined with the high level of automation and flexibility of the Speedmaster CX 104 convinced us.”

Gafs Kartong, Sweden

"We were won over by this company’s cutting-edge offset technology and service portfolio, along with an excellent price-performance ratio."

Kartonpack Dobozipari Nyrt., Hungary

Hungarian folding carton manufacturer Kartonpack boosts productivity by 25 percent with new Speedmaster CX 104 from Heidelberg

Buroform, Belgium

"Fast makeready and high production output - that makes the Speedmaster CX 104 the perfect press for short and long runs. Our spectrum ranges from 300 to 100,000 sheets."
