The Easymatrix 106 FC can be used both as a conventional die-cutter or as a finishing machine for hot-foil jobs.

The Easymatrix 106 FC is the perfect machine, if you like to widen your packaging portfolio with hot foil stamping. Additional to the cutting station, it is equipped with a hot foil unit, which enables you to install three to six longitudinal and up to two transversal foil feeding shafts. The Hot Foil Computer System helps to speed up the foil adjustment and keep an eye on the parameters while running the machine.

At a glance

  • High machine speed: 7,500 sheets per hour
  • High die-cutting pressure: up to 260 metric tons
  • 20 individually adjustable heating zones
  • High flexibility by a foil path longitudinal and optionally transversal to the direction of sheet travel
  • Easy setup and saving of foil-relevant data on separate computer system
  • Easy foil changing from the operator side, thanks to telescopic foil feeding bars
  • Non-stop function in feeder and delivery
  • The basic model is already equipped with all functions and options to start hot-foil embossing or die-cutting

Delivery 5 Die-cutting station 3 Hot-foil unit 4 Non-stop feeder 1 Feeder table 2 Hot-foil computer system 6
Key features

  • You are completely flexible with the Easymatrix 106 FC, because it processes an incredibly large range of substrates, from paper with a grammage starting at 90 g/m², to cardboard or solid cardboard of up to 2,000 g/m², and corrugated cardboard with a maximum thickness of four millimeters.
  • The Easymatrix 106 FC combines outstanding quality with efficient workflows – at processing speeds of up to 7,500 sheets per hour.
  • Sheet formats ranging from 360 × 400 mm (14.17 × 15.75 in) to a maximum of 750 × 1,060 mm (29.53 × 41.73 in) can be processed.

The machine shown is a sample configuration. Some of the equipment features mentioned are optional.

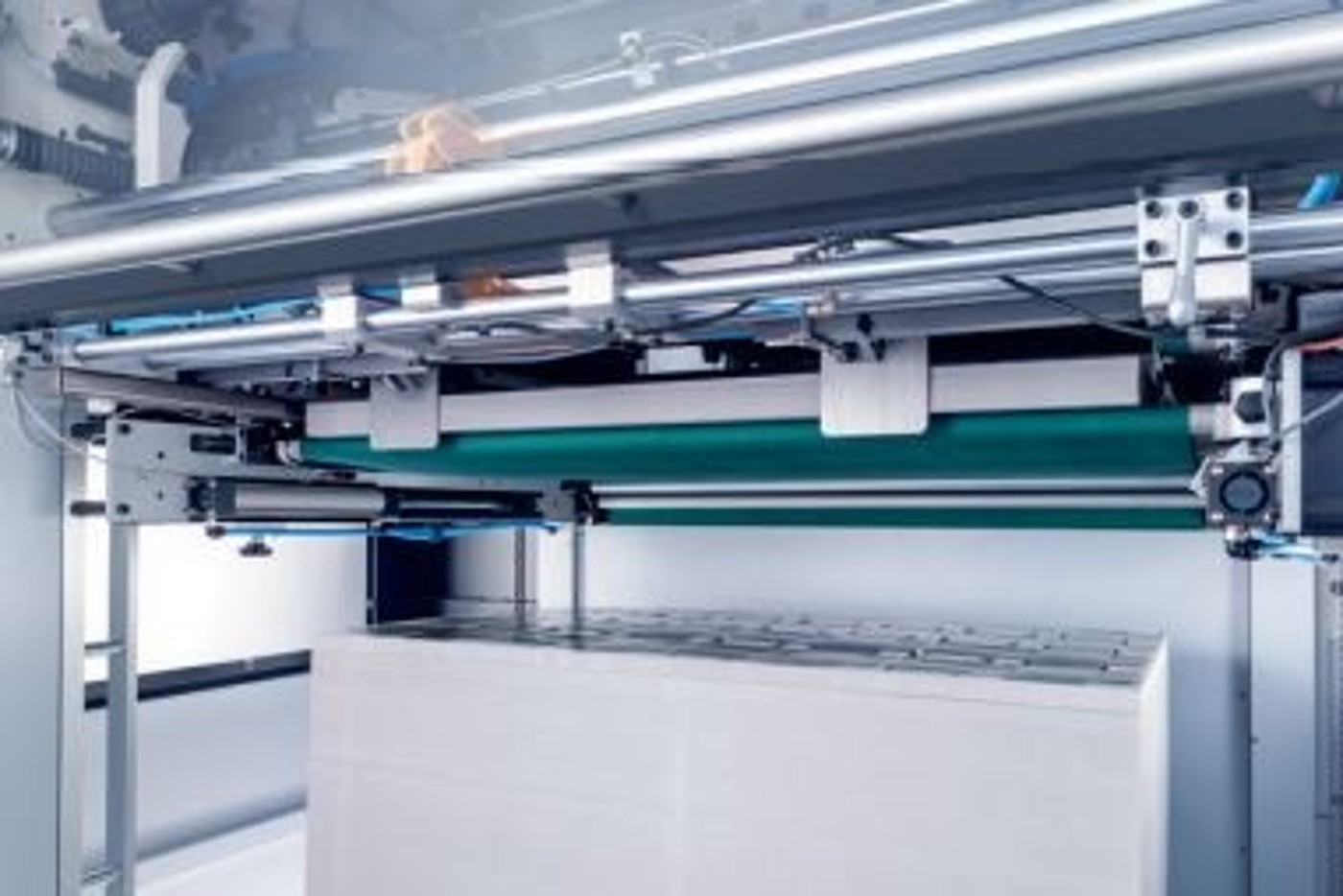

Delivery

  • Non-stop rolling carpet
  • Pneumatic flap for test sheet removal
  • Brake brush with mechanical brake force adjustment

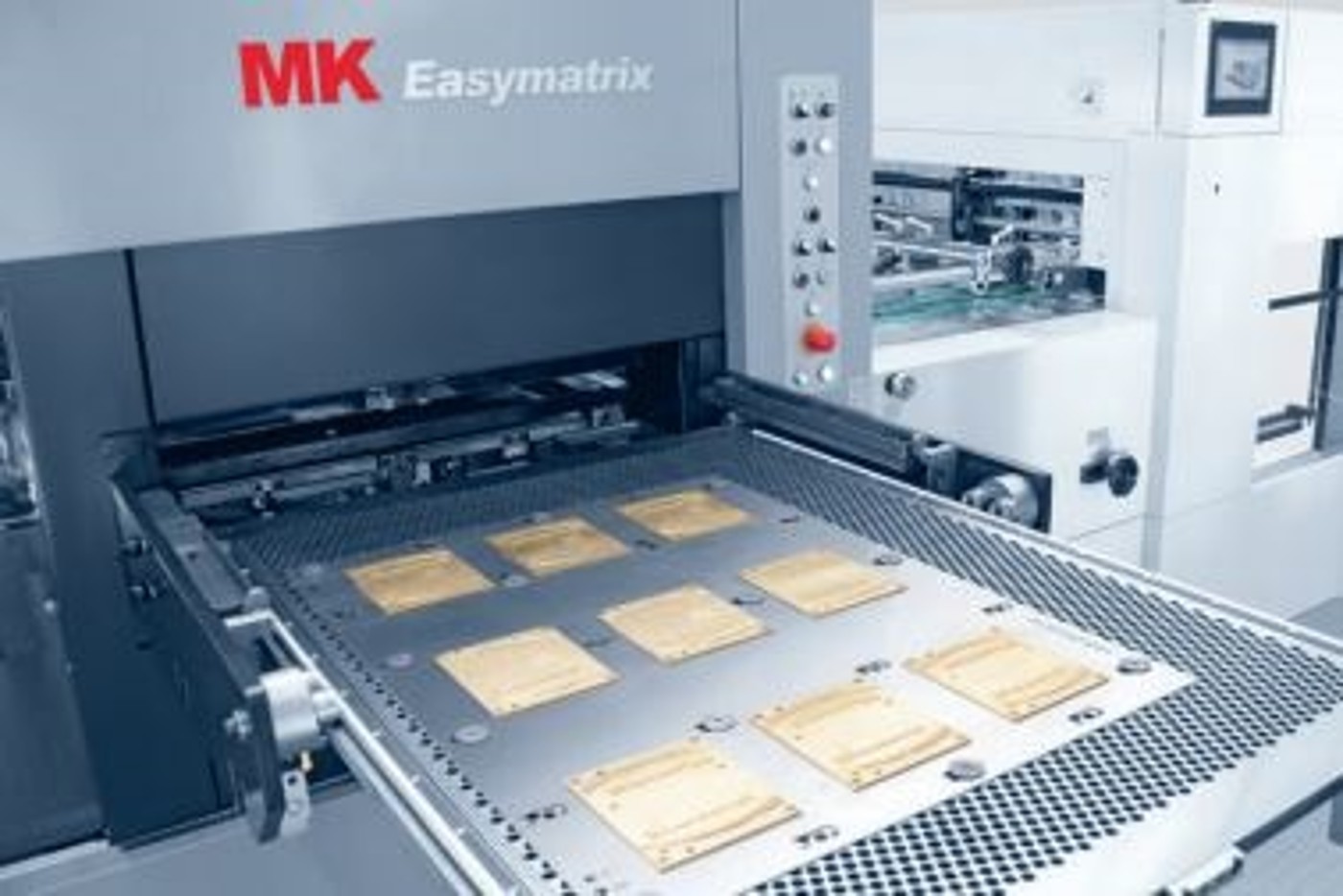

Die-cutting station

  • Register system
  • Motorized die-cutting pressure adjustment
  • Cutting plate fine adjustment
  • Air cushion for easy cutting plate handling
  • Chase changer (option)

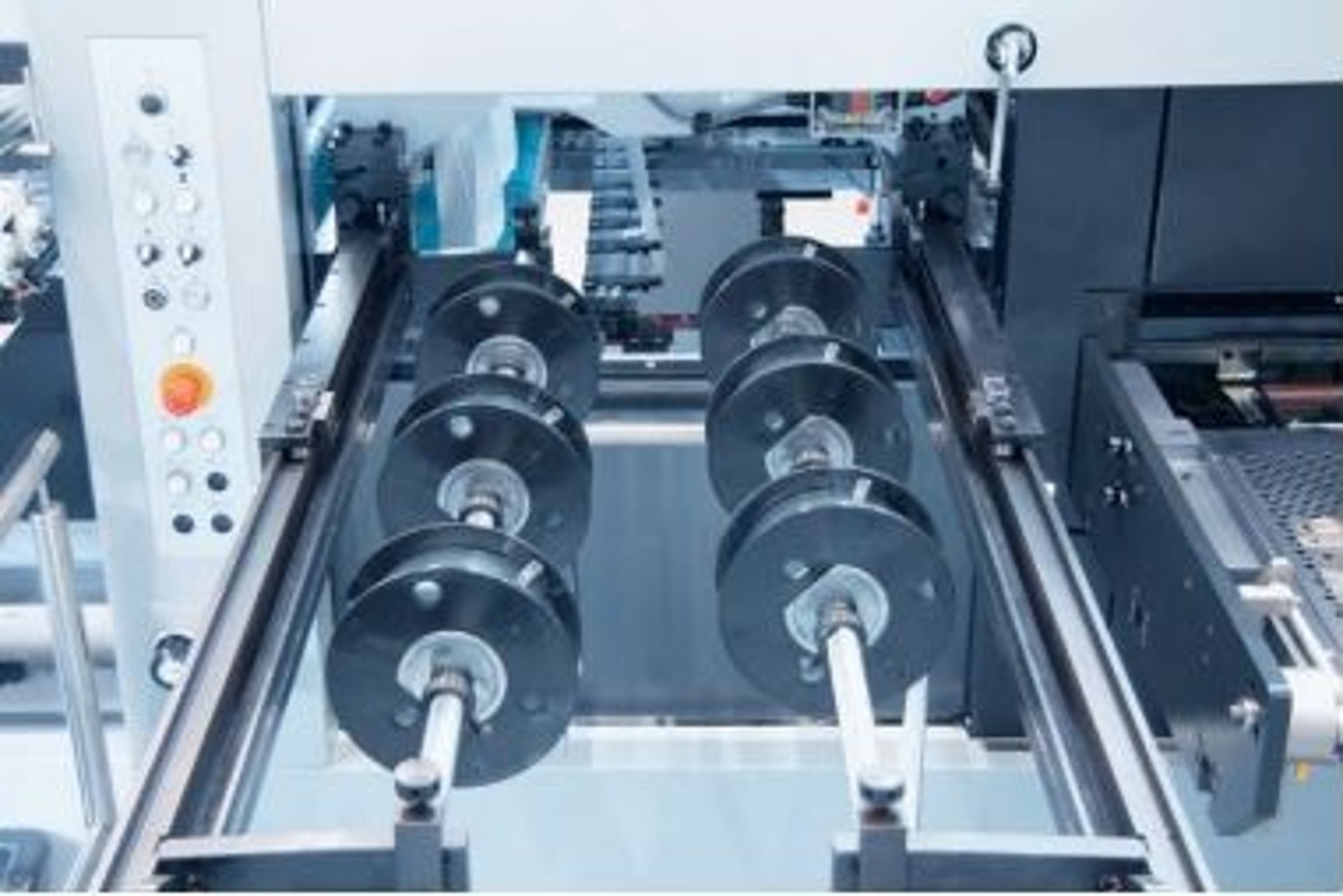

Hot-foil unit

  • Three longitudinal foil feeding shafts
  • • Hologram device (option)
  • • 20 heating zones (cutting station)
  • • Telescopic longitudinal foil feeding bars
  • • Motorized brush system for foil disposal
  • • Rewinder (option)

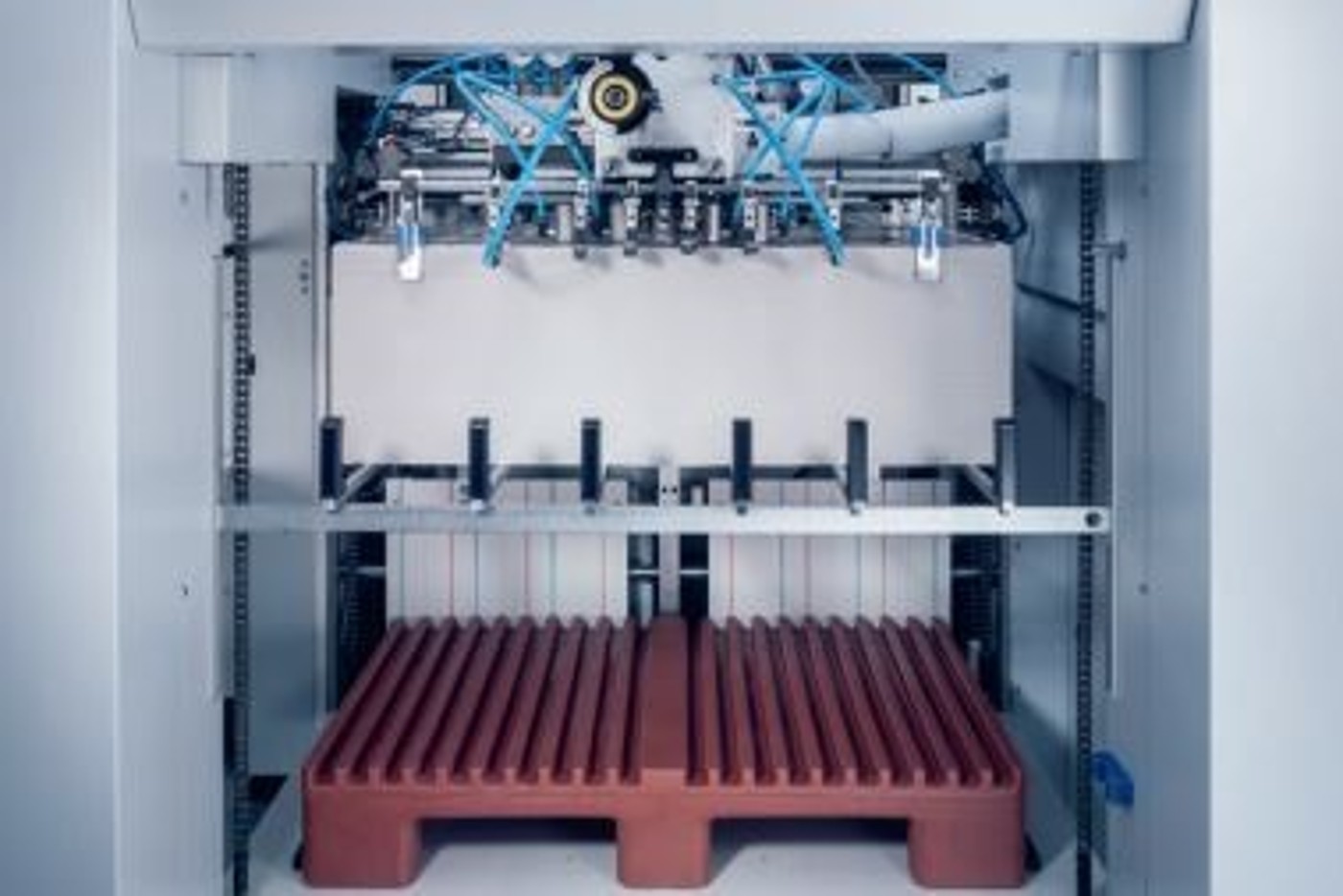

Non-stop feeder

  • Suction head for paper, cardboard and corrugated cardboard
  • Suction head with quick-positioning function
  • Pile platform with motorized pile side alignment
  • Mechanical double-sheet control

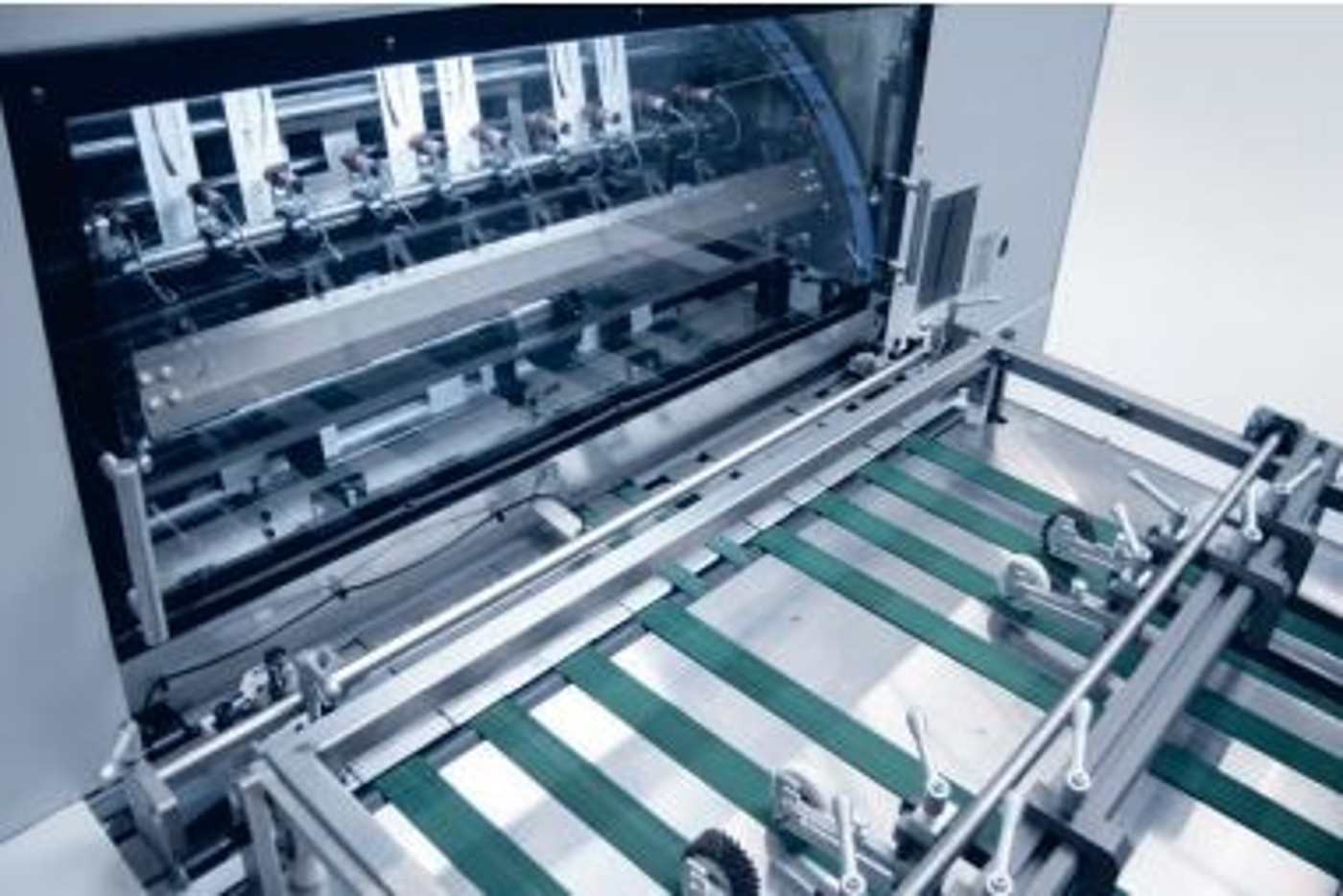

Feeder table

  • Register system
  • Side lay with pull/push function on operator and drive side
  • Central adjustment of brushes and rollers
  • Four front lays with active optical monitoring
  • Ultrasonic double-sheet detector

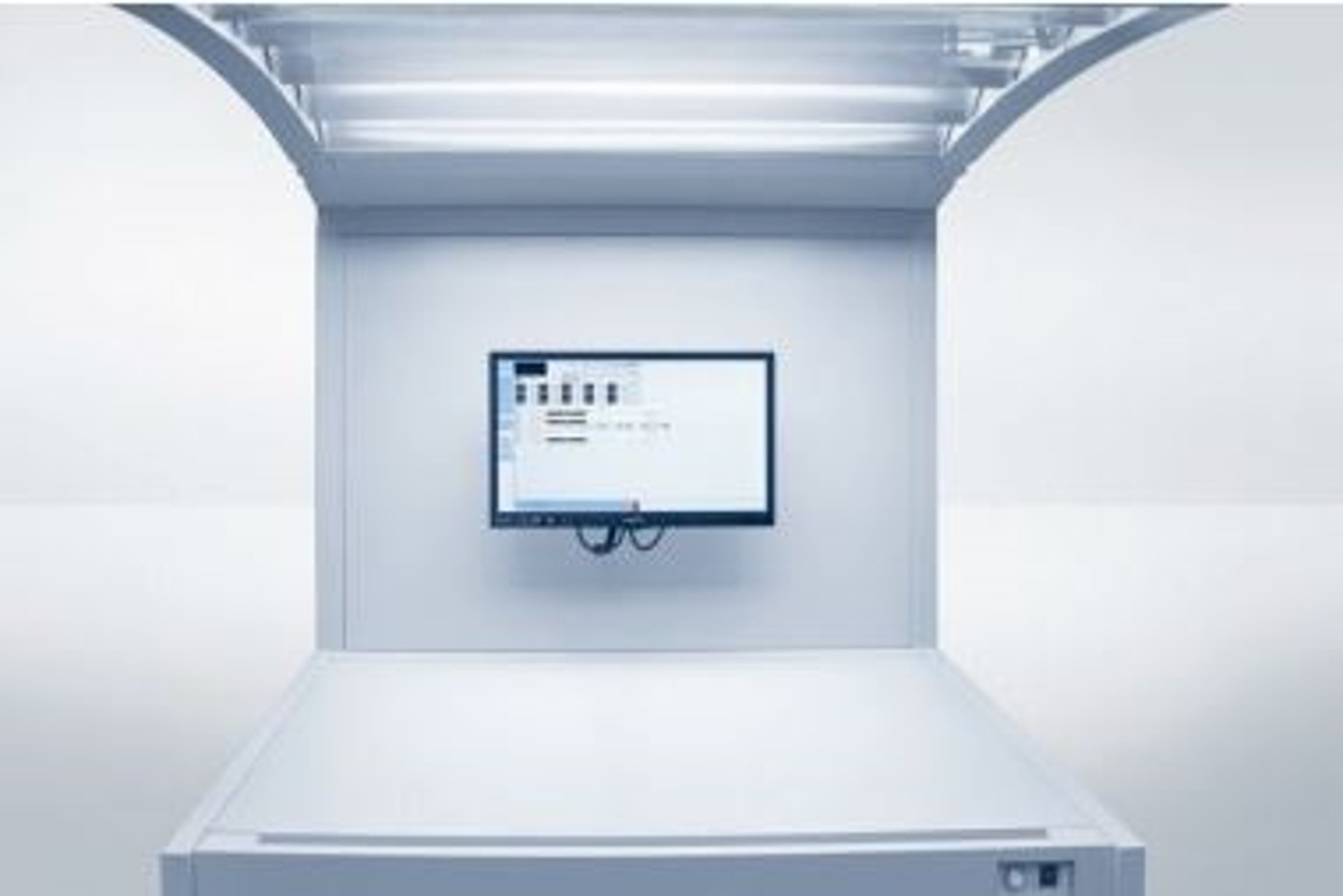

Hot-foil computer system

  • Calculation of foil feeding steps
  • Adjustment of temperature and die-cutting pressure
  • Hologram application control
  • Job data storage
  • Simulation of foil feeds

Technical data

Performance Data
Sheet size (max.) 750 x 1,060 mm
Cutting pressure (max.) 260 t
Machine speed (max.)7,500 s/h
Hot Foil Stamping
Temperature (max.) 180 ° C
Number of heating zones 20
Number of foil feeding shafts 3 – 6 longitudinal
1 – 2 transversal


Easymatrix 106 FC brochure

The Easymatrix 106 FC is manufactured by Masterwork and exclusively distributed and backed up by the professionaland renowned, worldwide sales- and service network of Heidelberg.
