For high-quality packaging.

The Duopress 106 FCS/FCSB manages hot foil stamping, die cutting, stripping and blanking in one single production process. Therefore this machine is suitable for the demanding cosmetic sector and cigarette industry, for packages of classy confectionery or liquor and other folding boxes, which like to promote the high-quality of its inside product at the point-of-sale.

Beside the hot foil stamping possibilities this machine is also capable to do precise hologram stamping.

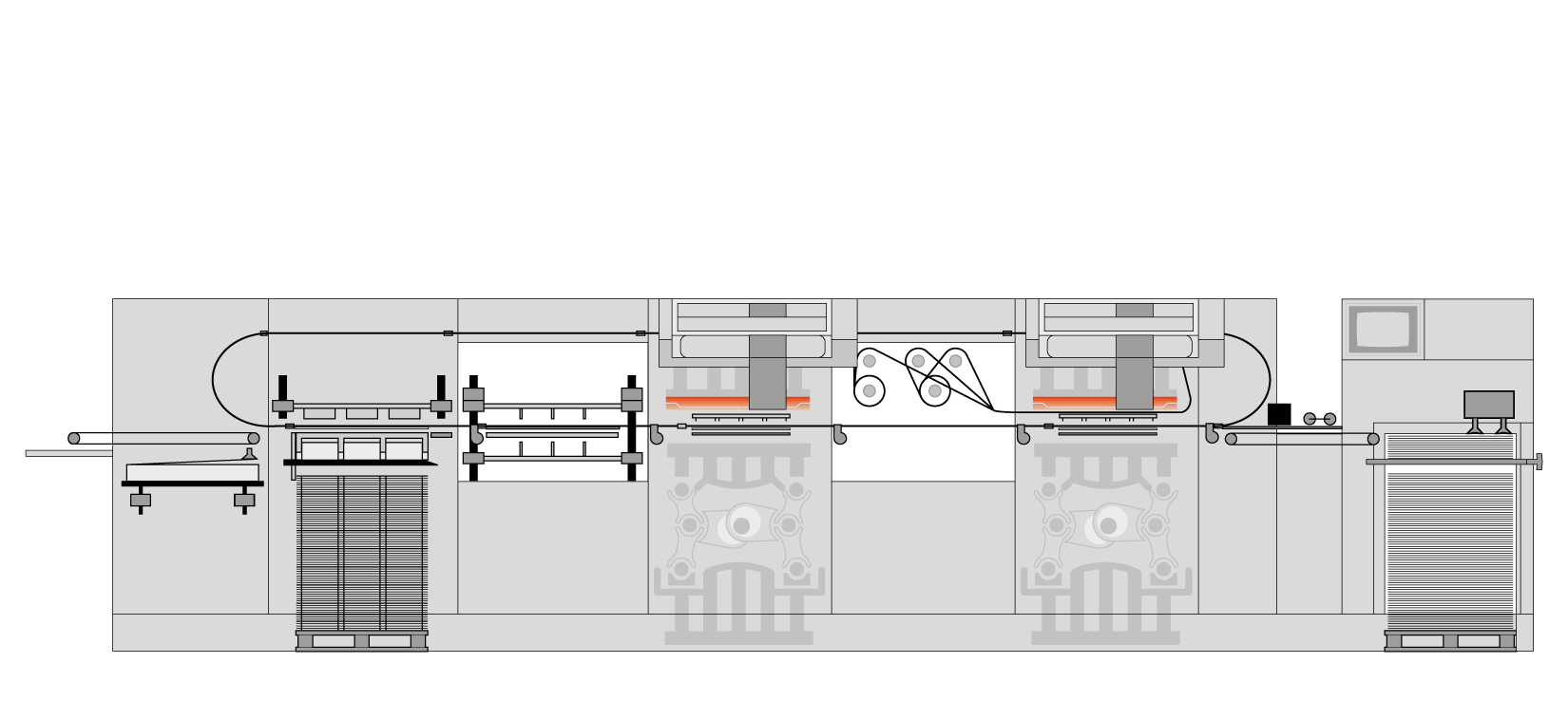

The Duopress is a unique die-cutting machine with two cutting stations; at which the first station is usually used for hot foil stamping. The Duopress 106 FCSB is one of four machines from the Duopress-series: Duopress 106 CS, Duopress 106 FC, Duopress 106 FCS, Duopress 106 FCSB.

Technical data

Processable materials & performance data
Paper (min.)90 g/m²
Solid cardboard (max.)2,000 g/m²
Corrugated cardboard (max.)/with MasterSet4.0 mm / 2.0 mm (0.16/0.08 in)
Sheet format (min.)350×400 mm (13.78×15.75 in)
Sheet format (max.)760×1,060 mm (29.92×41.73 in)
Machine speed (max.)6,000 sheets per hour
Die-cut pressure (max.)2.5 MN / 250 t
Performance data hot-foil embossing
Hot-foil embossing speed (max.)5,000 sheets per hour
Temperature40°C–180°C
Number of heating zones20
Foil feeding shafts (per station)3 longitudinal, 2 transversal
Foil reel diameter (longitudinal)250 mm (9.84 in)
Foil reel diameter (transversal)200 mm (7.87 in)
Foil width20–1,060 mm (0.79–41.73 in)


Duopress 106 FCS/FCSB brochure

The Duopress 106 FCS/FCSB is manufactured by Masterwork and exclusively distributed and backed up by the professionaland renowned, worldwide sales- and service network of Heidelberg.
