High-performance automatic machine for brochure and booklet production

The C.P. Bourg Booklet Maker is a highly flexible finishing solution for the automated production of brochures, booklets, and manuals. It was developed to bridge the gap between fast digital printing and efficient finishing.

Its outstanding strength lies in its flexibility, as it can be operated seamlessly with leading digital printing presses either inline (directly connected) or nearline (as a separate unit). This enables you to process print jobs from various sources and optimally control the utilization of your machines.

At a glance

  • Check Created with Sketch.

    Fully automatic job switching:

    Minimal setup times thanks to automated settings (format, stapling position, fold) without manual intervention – ideal for jobs with variable data and short runs.

  • Check Created with Sketch.

    Inline and nearline capability:

    Maximum flexibility. It works either directly in conjunction with a printing press or as a stand-alone unit fed by external sheet delivery systems.

  • Check Created with Sketch.

    High production speed:

    Offers fast brochure production of up to 5,000 booklets per hour (depending on model) to take full advantage of the speed of digital printing.

  • Check Created with Sketch.

    Extensive binding options:

    Includes precise saddle stitching (stapling) and optional square-edge folding to give brochures a professional, book-like finish.

  • Check Created with Sketch.

    Modularity and scalability:

    The system can be expanded with additional modules (such as trimming units or feeders) to adapt its range of functions to growing requirements.

Output Conveyor 5 Feeder 1 Square Edge 4 Booklet Maker 3 Bourg Prep. Modul 2
C.P. Bourg Booklet Maker

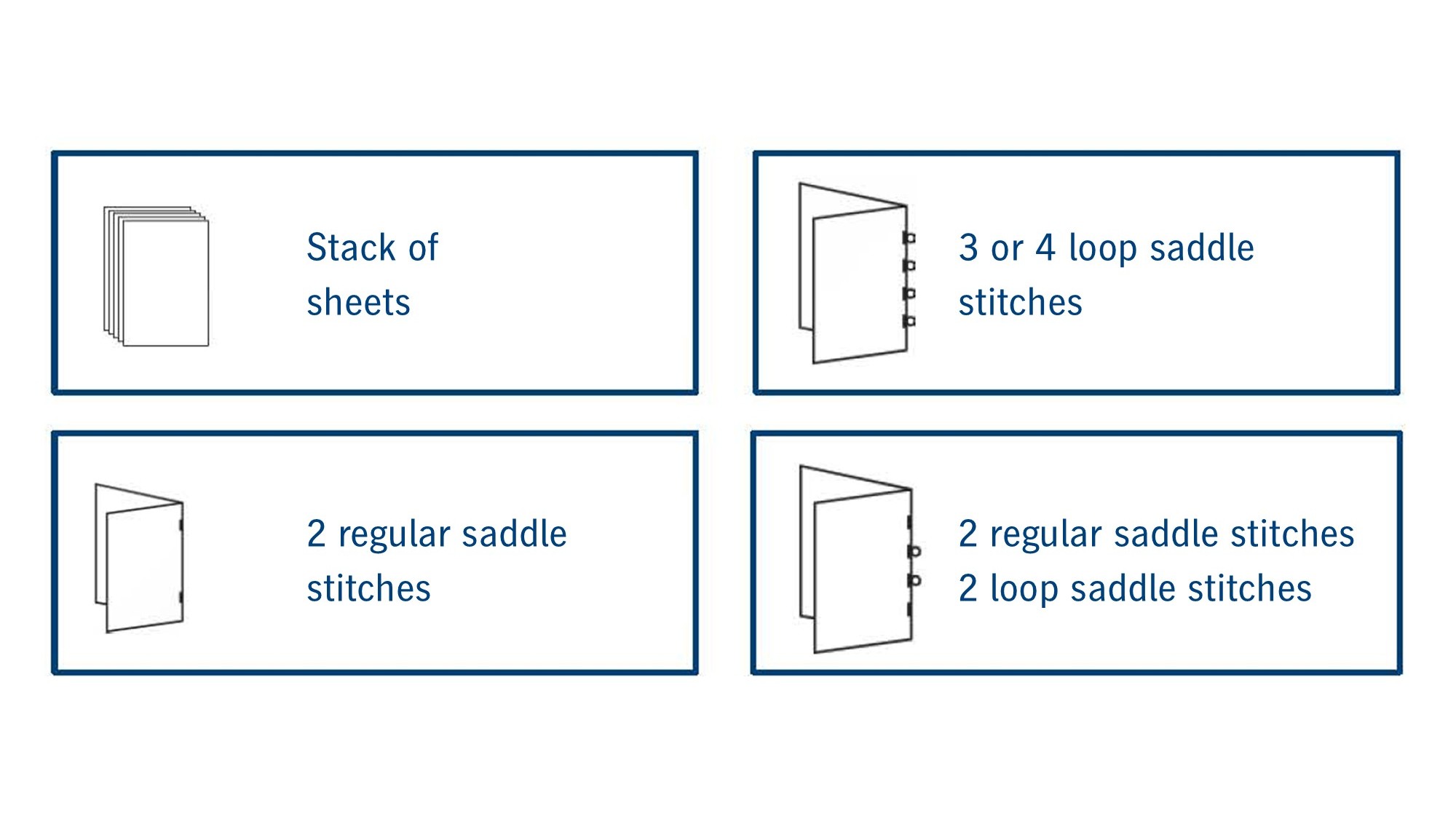

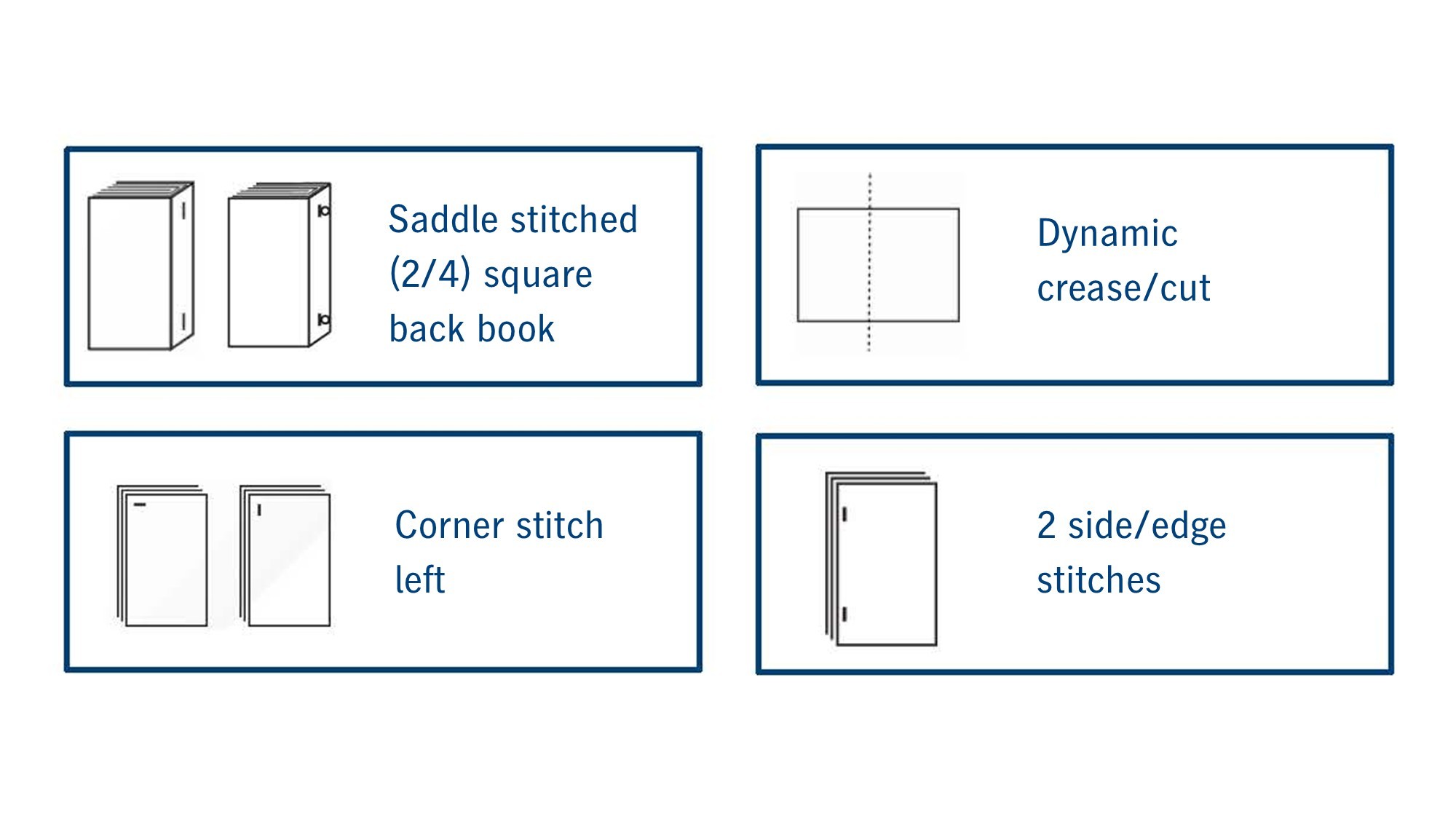

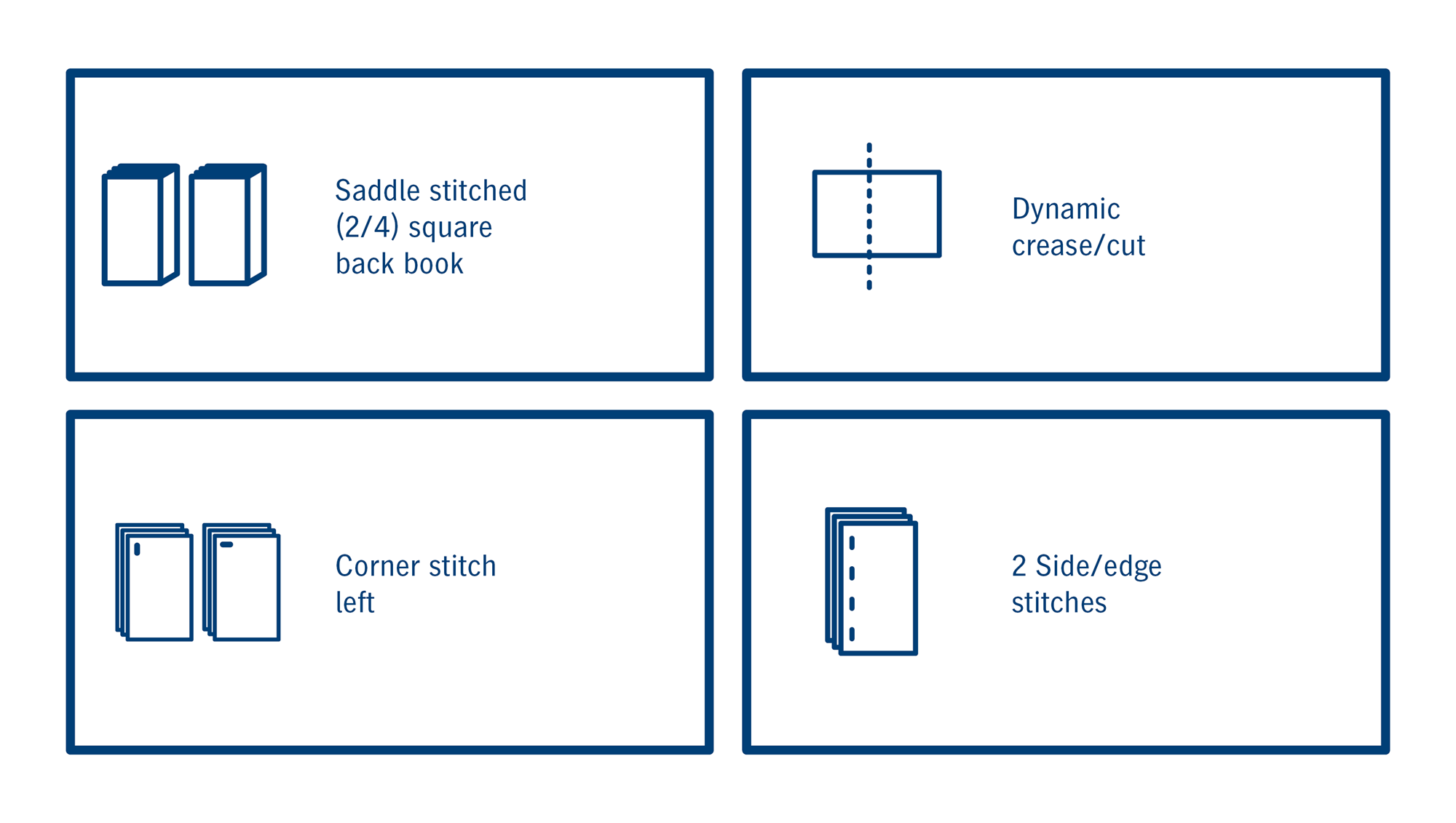

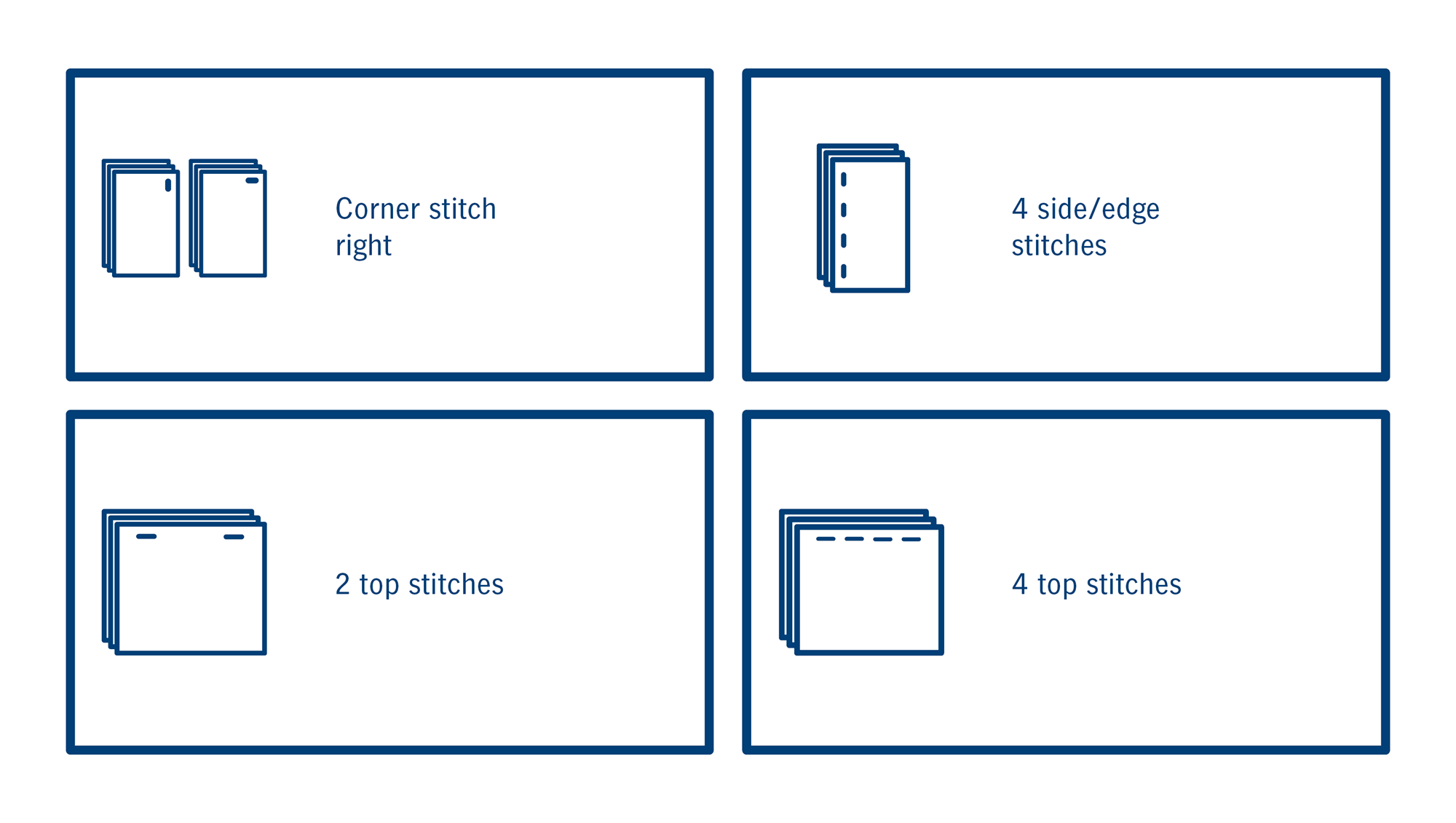

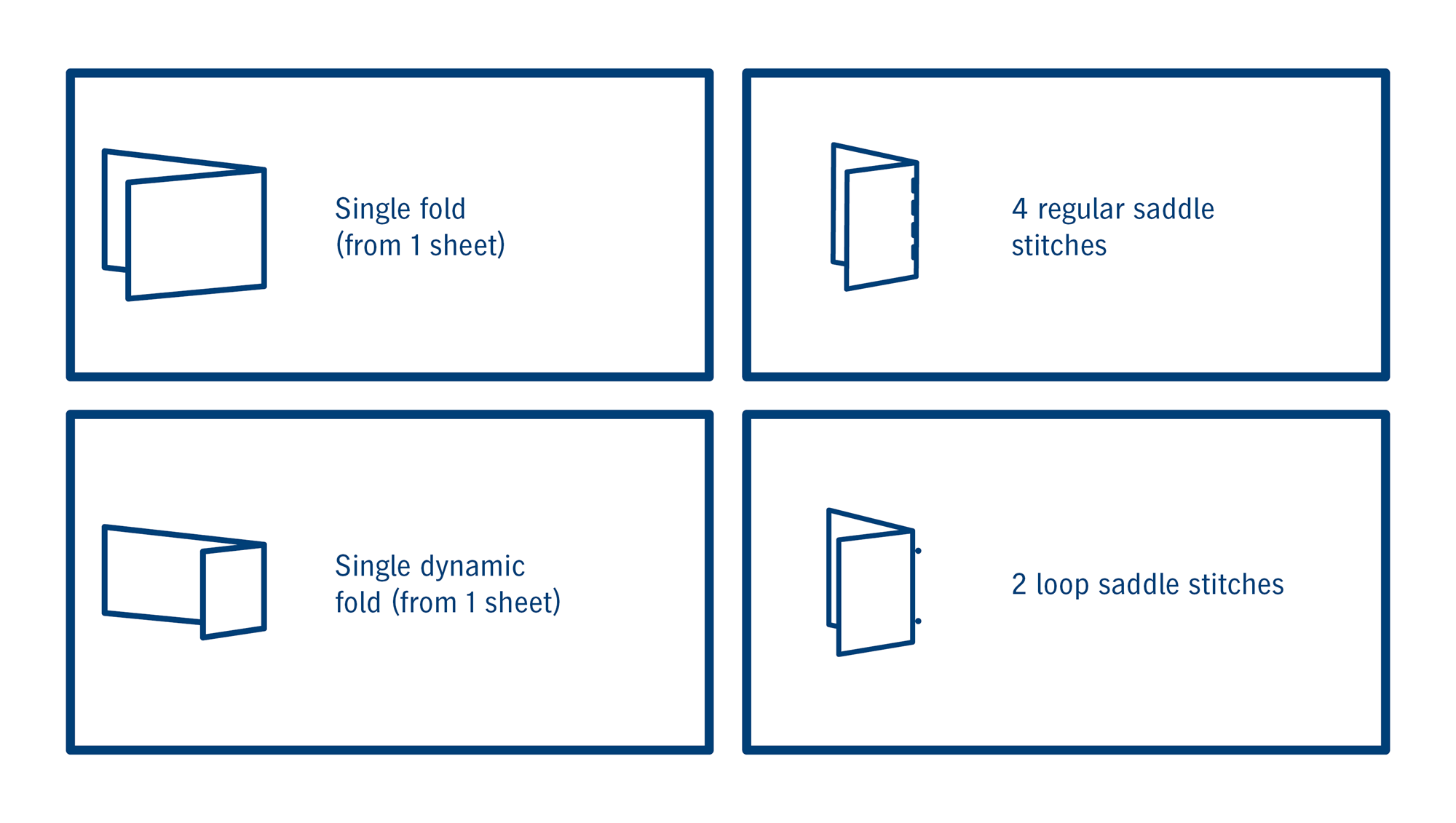

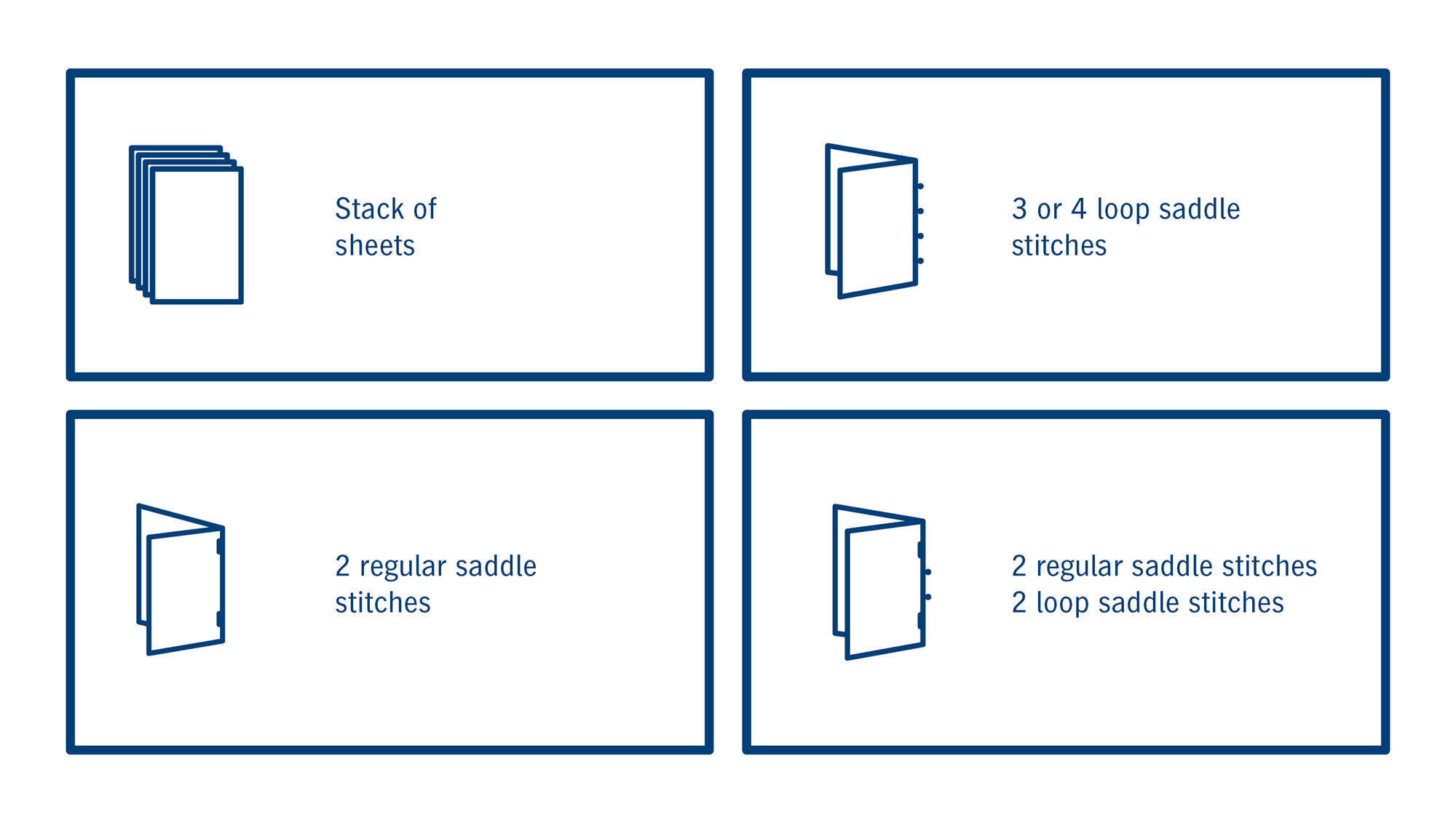

The C.P. Bourg Booklet Maker is the most user-friendly system on the market, designed for producing high-quality saddle stitching, top stitching, or corner stitching.

Output Conveyor

  • Collects the finished booklet(s)



Feeder

  • Supplied by Jetfire or other printing press(es)
  • Inline/nearline or dual mode operation
  • Enables hybrid production by loading the two compartments differently
  • Dual barcode scanning enables automatic adjustment of the system based on a predefined program sequence

Square Edge

  • Form the square spine of the booklet
  • “Rectangular” spine enables better stacking of products
  • Up to 60 sheets can be processed (depending on substrate thickness)
  • Trims the side of the brochure

Booklet Maker

  • Assembles the brochure, staples, and performs final folding
  • Operator panel enables guided configuration of production using the graphical interface
  • Collects and punches the brochure (2 or 4 staples possible)
  • Saddle back fold of the brochure possible

Bourg Prep. Modul

  • Performs operations from the feeder (rotate, trim, micro-perforate, crease, cut, or fold)
  • Enables a 2-up or 4-up configuration
  • Prevents fiber breaks by creasing for the upcoming folding
  • Perforation to reduce air in thicker brochures

Applications

Modular system configurations

Design the optimal stitching and binding system for your digital press

C.P. Bourg's modular concept offers great flexibility and leaves options open for the future. Basic configurations can be expanded later by installing additional modules. Furthermore, the Jetfire 50 and Versafire printing systems allow you to integrate multiple processing functions into a single production line for offline, nearline, or inline processing.

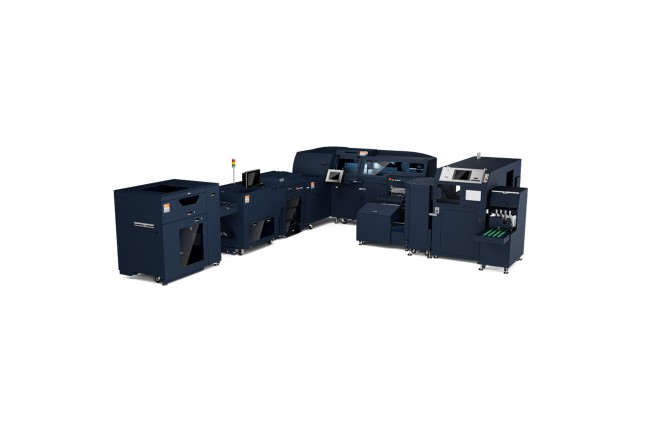

Adhesive-bound brochures in 2-up production with three-sided trimming

Highly efficient production of adhesive bindings in variable thicknesses is carried out in double-use (2-up) mode, either with PUR or cost-efficient EVA hot melt. The dual adhesive system enables hybrid gluing, in which the combination of PUR spine and EVA side gluing ensures maximum durability with immediate stability. Finally, an integrated three-knife trimmer guarantees precise all-round trimming at the top, bottom, and front.

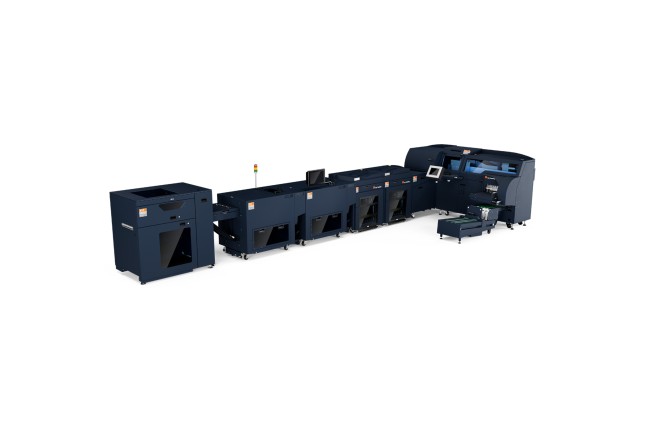

Adhesive-bound brochures in 4-up production

Highly efficient production of adhesive-bound brochures in variable formats and thicknesses – achieved in productive 4-up mode. The dual adhesive system offers maximum flexibility through the use of PUR or EVA hot melt as well as the option of hybrid combination gluing. For a perfect finish, the line can be optionally expanded with a three-knife trimmer for precise all-round trimming.

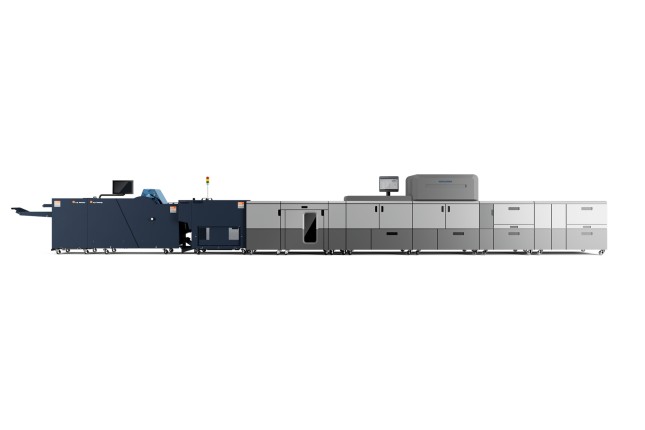

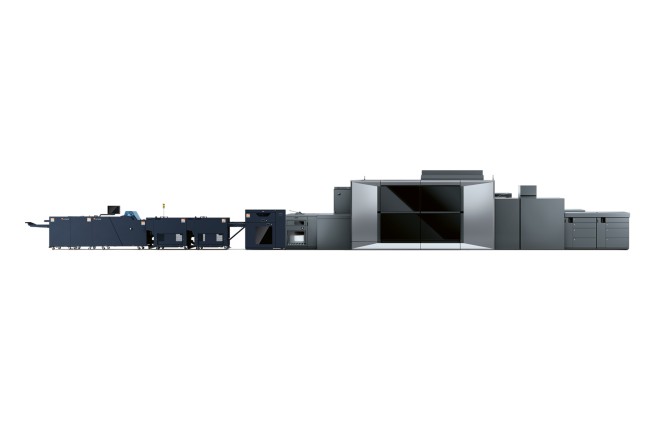

Brochure production with wire stitching on Versafire LP

Production of brochures in variable formats and thicknesses with precise wire stitching and three-side trimming. Thanks to the fully modular system design, the production line can be configured precisely to your specific requirements.

Brochure production with wire stitching

Fully integrated inline solution for producing wire-stitched brochures – including precise front trimming in a single operation.

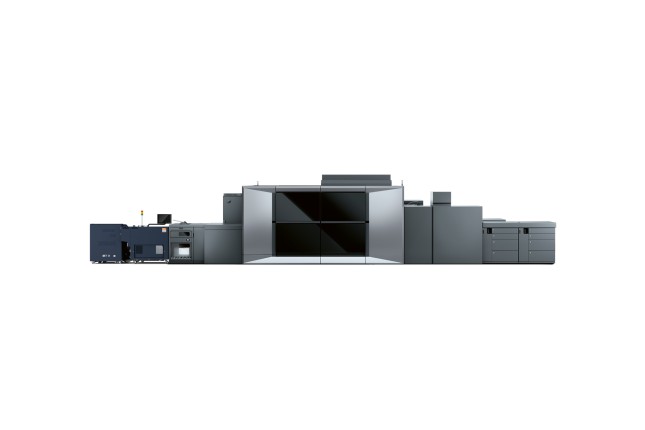

Cutting and stacking

Fully integrated solution for cutting and stacking DIN A3 and DIN A4 single sheets. The system produces precise book blocks ready for subsequent adhesive binding—eliminating the need for a separate cutting process and significantly reducing your production time.

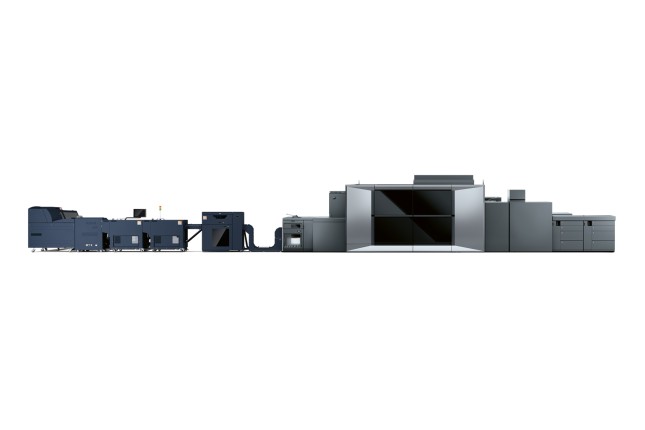

Adhesive-bound brochures

Fully integrated inline solution for producing high-quality adhesive bindings. Choose between PUR or EVA hot melt for maximum durability. For a perfect finish, the system can be optionally expanded with a three-knife trimmer for precise head, foot, and front trimming.

Brochure production with wire stitching

Production of brochures in variable formats and thicknesses – with classic wire stitching and precise three-sided trimming. Enhance the look with a square-back finish for an elegant, straight spine. Thanks to its modular design, the system can be adapted precisely to your requirements.

Technical specifications

Speed (max.)Up to 5,000 sets per hour
grammages 45 - 350 gsm
Brochure thickness (back stitching) Max. 3 mm (up to 50 sheets, including envelope)
Brochure thickness (top/side stapled) Max. 6 mm (up to 100 sheets, including envelope)
