Flexomaster label printing press

Proven productivity.
Built for efficient label production.

Available in 6-, 8-, 10- or 12-unit configurations, the Gallus Flexomaster is built around proven application requirements. By focusing on the applications converters use every day, the Gallus Flexomaster eliminates unnecessary complexity. The result is faster operator training, simplified production workflows, reduced setup times and a faster path to profitability.

Flexomaster label printing press

High-speed label printing with consistent quality.

Combining high-speed performance with precise register control, the Gallus Flexomaster operates at speeds of up to 200 m/min without compromising accuracy. Its optimised ink chamber delivers stable ink transfer with minimal splashing and reduced foaming. Every aspect of the press is designed for simple, efficient operation, from quick cylinder changes on the Gallus RDC Quick die-cutter to seamless control through the integrated HMI (Human Machine Interface) or directly at the print unit.

Versatile label production. Less complexity.

Available in a 440 mm web width configuration, the Gallus Flexomaster combines flexographic and screen-printing capabilities with selected converting and embellishment options in a focused, purpose-built platform.

Designed for key growth markets including logistics, household and technical products, pharmaceuticals, and health, beauty and cosmetics, it provides a solid foundation for profitable growth and long-term business success.

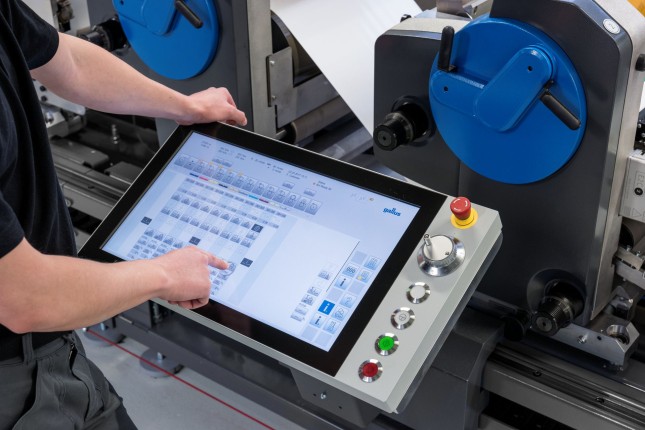

HMI touch panel

The intuitive HMI touch panel is clearly designed and reinforces the user-friendliness of the Gallus Flexomaster.

Ink chamber

The ink chamber is designed for high printing speeds and reduces foaming while ensuring optimum ink transfer to the anilox rollers.

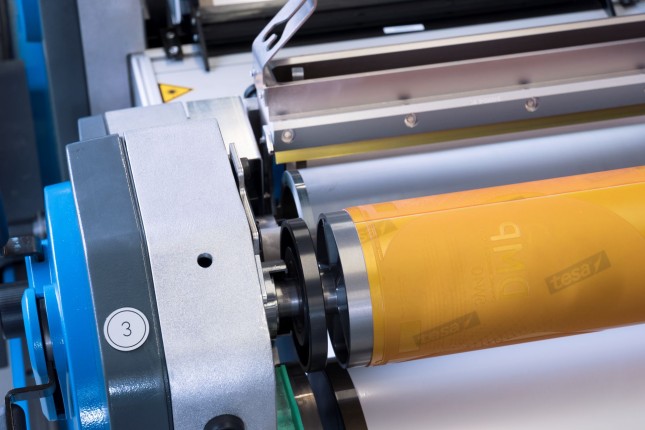

Servomotors

Two servomotors in the flexographic printing unit drive both the printing cylinder and anilox roller, ensuring typical premium Gallus print quality.

At a glance

  • Check Created with Sketch.

    Minimal waste thanks to short web path (just 1.4 m between printing units)

  • Check Created with Sketch.

    Printing speeds of up to 200 m/min

  • Check Created with Sketch.

    Fast and intuitive job changes for increased production time

  • Check Created with Sketch.

    Consistent print quality across long production runs

  • Check Created with Sketch.

    Wide choice of substrates thanks to printing cylinders and anilox rollers driven directly by servo drives

Whether producing pressure-sensitive labels, shrink sleeves, glue-applied labels, in-mould labels, multilayer labels, converters benefit from a reliable and efficient production platform.

Additional capabilities for flexible packaging, such as roll-to-roll sachets, create new possibilities for diversification and profitable growth.

Technical data

Machine data
Mechanical machine speed max. 200 m/min (656 ft/min)
Max. web width 445 mm (17.5")
Min. web width 220 mm (8.7")
Print
Max. printing width 440 mm (17.3")
Max. formal length 635 mm (25")
Min. formal length *1) 203.2 mm (8")
Max. number of print operations
12
Converting
Max. web width 440 mm (17.3")
Max. formal length 635 mm (25")
Min. formal length 254 mm (10")
Max. number of processing operations
at fixed position in converting section		2
Substrates
Self-adhesive materials ✓
Paper ✓
Monofoil label materials ✓
Material thickness *2) 50 - 250 μm
Other Substrates on request
Drying/curing
UV ✓
Remote diagnosis
Gallus Remote Access ✓

* 1) Screen from 270 mm (10,625")

* 2) Substrate depending

All technical data represents approximate values. Technical data may vary depending on the machine configuration, job, web width, consumables, substrate and possibly other factors. Gallus reserves the right to make technical and other changes
