Gomundang boosts productivity and quality with Korea’s first fully automated MK postpress line

Founded in 1962 in Daegu’s Dalseo-gu district, Gomundang Printing Inc. is one of South Korea’s leading printing and packaging companies, continuously expanding with the goal of becoming a global market leader. Following its early international presence in China, the company has since established production facilities in Vietnam, further strengthening its global footprint.

Gomundang manufactures packaging and labels for renowned brands such as LG and Samsung, as well as clients in the food, beverage and tobacco industries. The company holds several quality certifications, including Single PPM, ISO 9001/14001, Six Sigma and G7 (CMS), and is dedicated to enhancing quality management and productivity.

With a long-term vision, the company is currently developing a smart factory in Asan, in the north-west of the country, which is focused on automation and future-oriented manufacturing. HEIDELBERG and MK Masterwork are playing a vital role as strategic partners for postpress packaging in this effort.

In order to build the smart factory, Gomundang installed three MK Masterwork machines in 2022: the MK Diana Eye 55, the Promatrix 106 CSB and the Duopress 106 FF. These were the first machines in Korea to be equipped with fully automated logistics systems for pallet feeding and delivery.

“Even before HEIDELBERG and MK partnered, we were familiar with MK Masterwork and its products. MK is one of the leading postpress packaging manufacturers in China, and we had positive experiences using their equipment in our Chinese plant. We trusted the performance of MK machines, so when building our new postpress facility in Korea, we confidently chose MK products from HEIDELBERG Korea,” said Mr. Lee Chun-gi, Director of the Asan plant.

Diana Eye

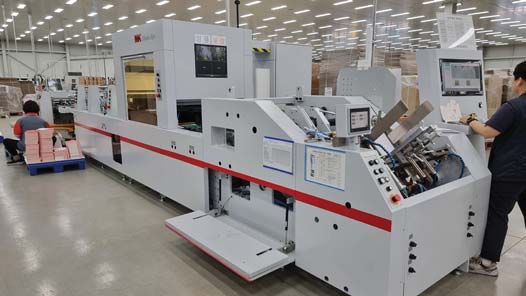

Diana Eye 55: precision inspection for quality assurance

The Diana Eye 55 inspection system features dual RGB line scan cameras with a dome and low-angle light source, enabling precise inspection of foil, metallized board, holograms, spot varnish, print quality, and color. A rear-side camera allows for even stricter inspection standards. MK also develops its own software for these systems, enabling quick adaptation to market changes and improved user experience.

At Gomundang, the machine includes customized features specifically for cigarette packaging, including an auto feeder, lifting device, and dedicated viewing table. The delivery section is equipped with a curved conveyor belt, making it easier for workers to identify and remove defective products.

Diana Eye
Promatrix
Promatrix

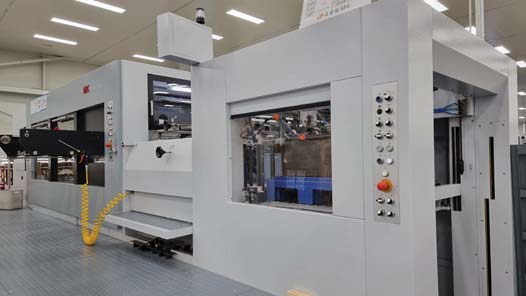

Promatrix 106 CSB: automated die-cutting with precision

The Promatrix 106 CSB is a professional die-cutter with stripping and blanking capabilities. It operates at speeds up to 7,500 sheets per hour and delivers a cutting pressure of 260 tons. The model installed at Gomundang includes a logistics system that automatically feeds and discharges pallets, along with a non-stop pile exchange function, significantly reducing labor and enhancing productivity.

Gomundang

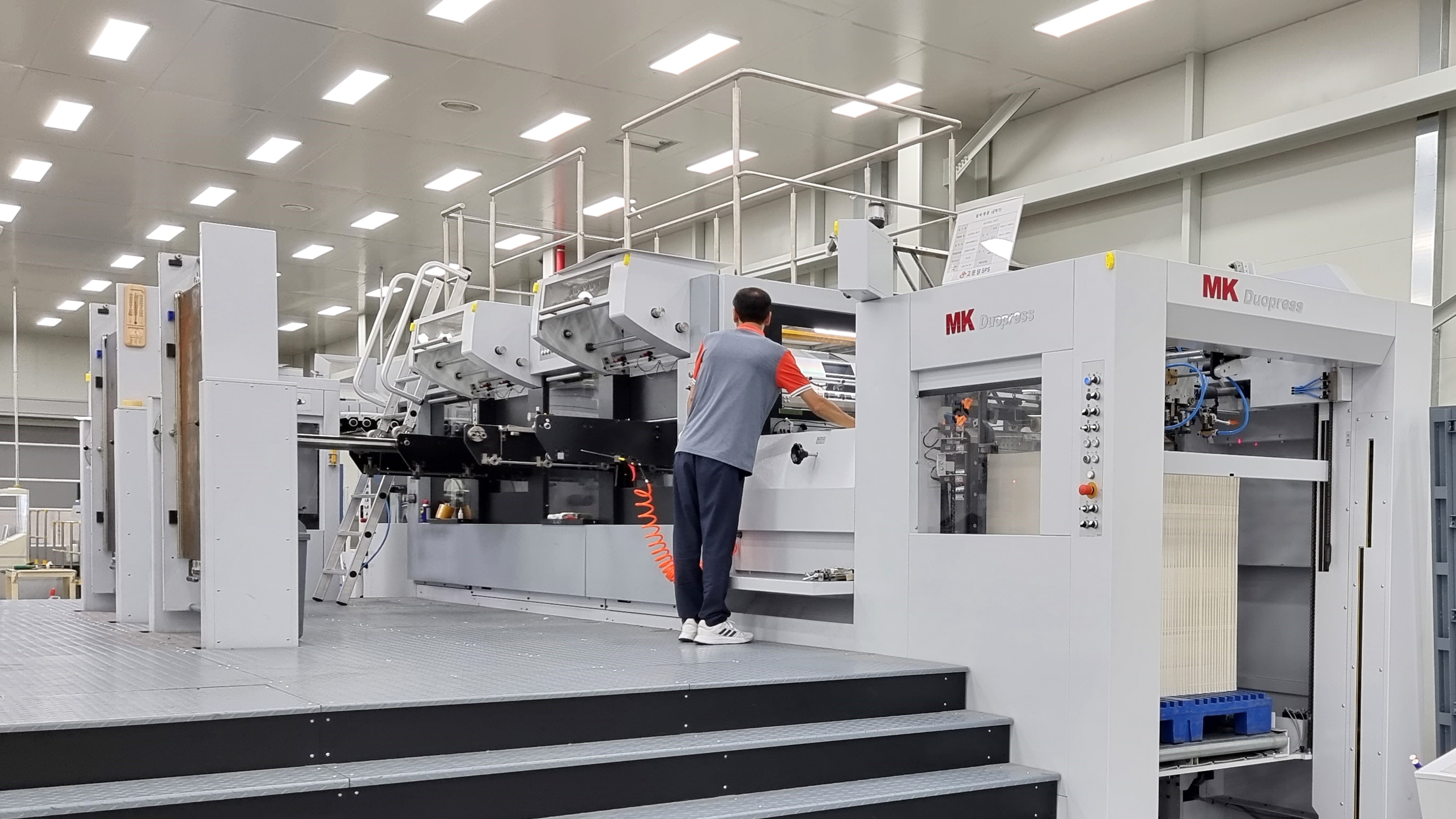

Duopress 106 FF: high-performance hot foil stamping and embossing

The Duopress 106 FF, the first of its kind installed in Korea, is designed for high-end packaging, particularly in cosmetics, food, and tobacco sectors. It performs hot foil stamping and embossing simultaneously with precise registration. It features 20 independently controlled heating zones for optimal energy use and temperature stability, all managed through an intuitive control station.

MK’s software for foil feed systems optimizes foil consumption, reducing waste and cost. Foil tension is regulated via a servo motor, and the foil rewinder simplifies waste handling. This model can execute two foil applications or combine foil stamping with die-cutting in a single pass, enabling multiple effects with high quality and throughput. Like all MK equipment, it includes fully automated logistics and complies with GS European safety standards.

Gomundang

Looking ahead: growing market share in packaging

Gomundang is currently working with MK Masterwork on a new project, aiming to further expand its footprint in the packaging sector, particularly in tobacco packaging. Through continued investment and innovation, the company seeks to strengthen its position in the global market.

“MK has excellent technology in postpress packaging and will be highly valued in Korea,” said Mr. Lee Chun-gi. “If HEIDELBERG provides strong application support for handling diverse jobs, I believe more Korean printing companies will come to appreciate MK machines as we do.”

Gomundang Packaging and Printing Group

593-7 Daecheon-dong, Dalseo-gu, Daegu,
704-801, South Korea

http://www.gomun.co.kr
